Thermoforming tray thermoformed plastic seeding tray thermo vacuum forming machine supplier in Guangdong

  • 1 - 1 Sets
    $10,000.00
  • 2 - 2 Sets
    $9,800.00
  • 3 - 3 Sets
    $9,700.00
  • >=4 Sets
    $9,500.00
Model Number:
HX-600A HX-600B HX-600C
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 20 20 30 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets)
PLC language (Min. Order: 1 Sets)
colour customized (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, plastic factury
Condition:
New
Type:
Vacuum Forming Machine, Vacuum Forming Machine, Thermoforming machine
Plastic Type:
PVC,PET,PP,PS,ABS,ACRYLIC, PET,PVC,PP,PS,ABS
Product Type:
Blister
Automatic:
Yes
Place of Origin:
Guangdong, China
Brand Name:
HUAXIANG, HUAXIANG
Voltage:
380V, 380V 50HZ 3Phase
Power(W):
18KW
Weight:
400KG
Dimension(L*W*H):
L2.7xW2.1xH2.1(m)
Certification:
MA
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Key Selling Points:
Competitive Price
Yes Place of Origin:
Guangdong, China (Mainland)
Max forming area:
L610*W560mm
Product name:
High Speed Vacuum Thermoforming Machine
Model:
HX-600
Forming speed:
4-15 cycle/min
HS code:
8477409000
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Wooden box or wooden frame, box:40USB/CBM, wooden frame:18USD/CBM;
2. If export to european countries,woodwork will be fumigated;
3.If container is too tighen,we will use pe- film for packing or pack it according to customers special request;
4.Machines will be Split to facilitate placement;
Port
SHENZHENG
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 20 20 30 To be negotiated
Video Description

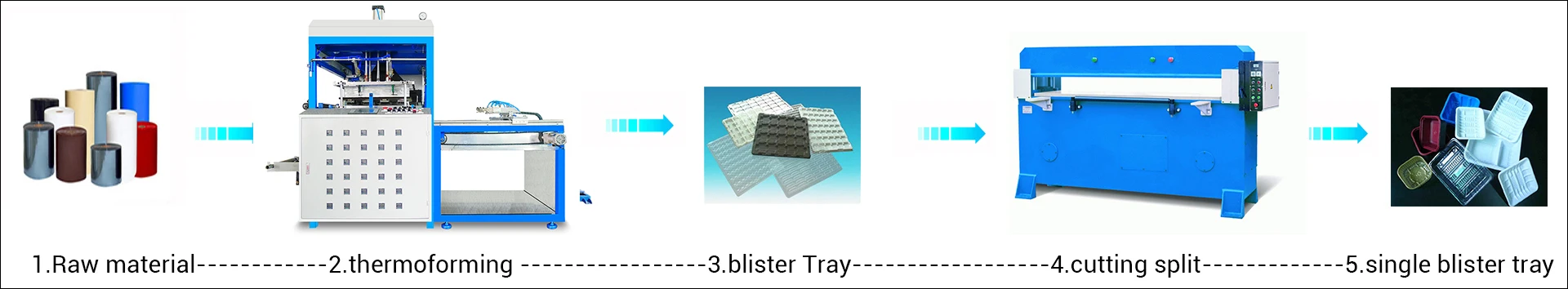

Process

Forming Process

Material feed→Heating→Forming→Sheet Clamping→Robot hand rise→Pull out→Sheet fall and stacking


Cutting Process

Take the sheet from Vacuum forming machine→cutting

Description

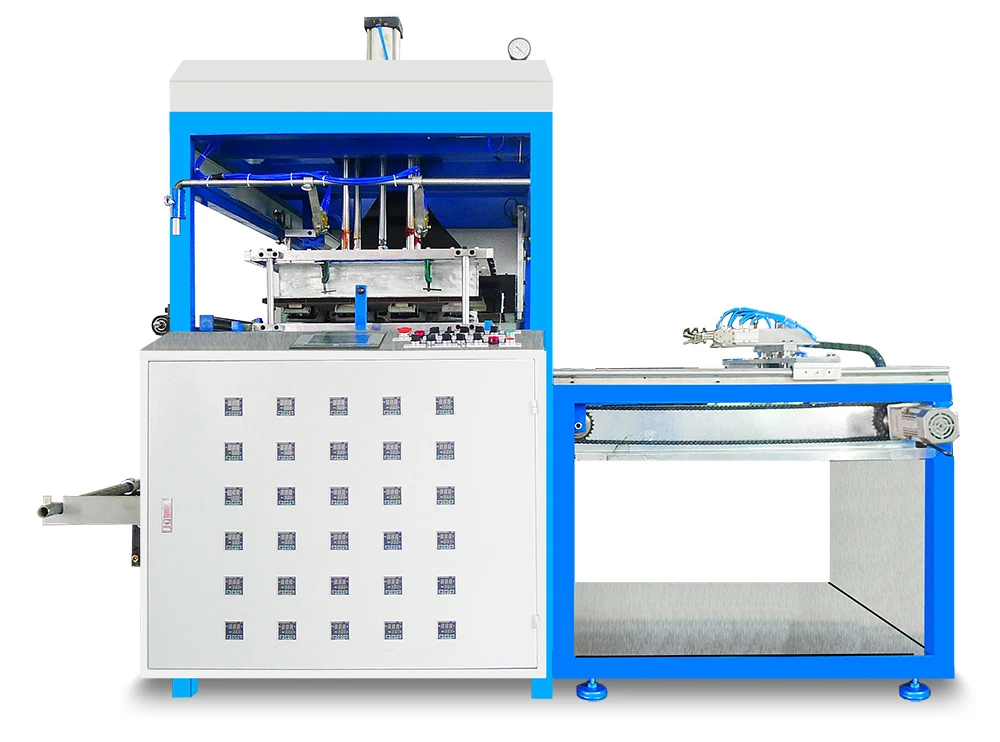

HX-600 Series Vacuum Forming Machine - compact type 2

INFO

HX-600 series is  user friendly machine with the power and capability to form demanding shapes and materials, Price-performance ratio for automatic production class machines. Efficient heat management, ease of use, compact and accessible price are instrumental to the internationally successful by many companies.

Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

Bigger forming size,adjust mold table,more powerfully vacuum pump

Hot sales machine,Suitable various packing blister, etc production.

Economic model for power cost saving.

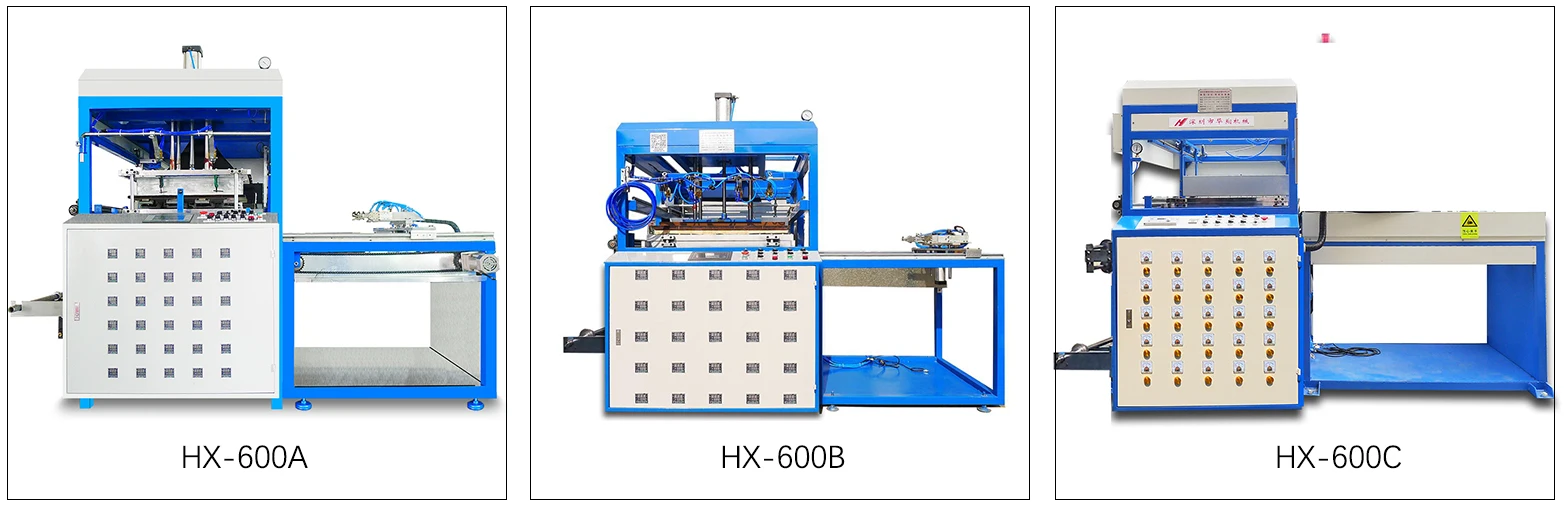

Model
HX-600A
HX-600B
HX-600C
Forming Length (mm)
Max.720
Max.610
Max.610
Forming Width  (mm)
410-560 (Adjustable)
560
560
Roll Material width
460-610 (Adjustable)
610
610
Heater(pcs)
30
25
25
Power (Kw)
19.5Kw
16.2Kw
15Kw
Vacuum Pump(M³)
100
63
40
Cooling Fan
Upper Mold
N/A
Digital Temperature Control
N/A
PLC Control
N/A
Robot hand rise/fall
N/A
Mold table with cooling
N/A
N/A
Mold table with width Adjustable
N/A
N/A
Spray Gun(pcs)
4
2
N/A
Material
PET,PVC,PP,PS,ACRYLIC,ABS
Material type
Roll or Sheet, thickness:0.1-2.0(mm)
Machine Size (meters)
L2.7×W2.1×H2.1
L2*W1.5*H2.1
L2*W1.5*H2.1
Machine Weight(Kg)
800
650
500

Main Features

1. Rapid, energy efficient ceramic heaters with variable standby, 25/30 independently controllable zones provides accurate heat control for consistent, high definition results;


2. pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times;



4. High output fans provide rapid cooling to speed up cycle times;


5. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;


6. Automatic forming the roll sheet, also able to use board sheet to loading pieces by pieces;


7. Twice vacuum

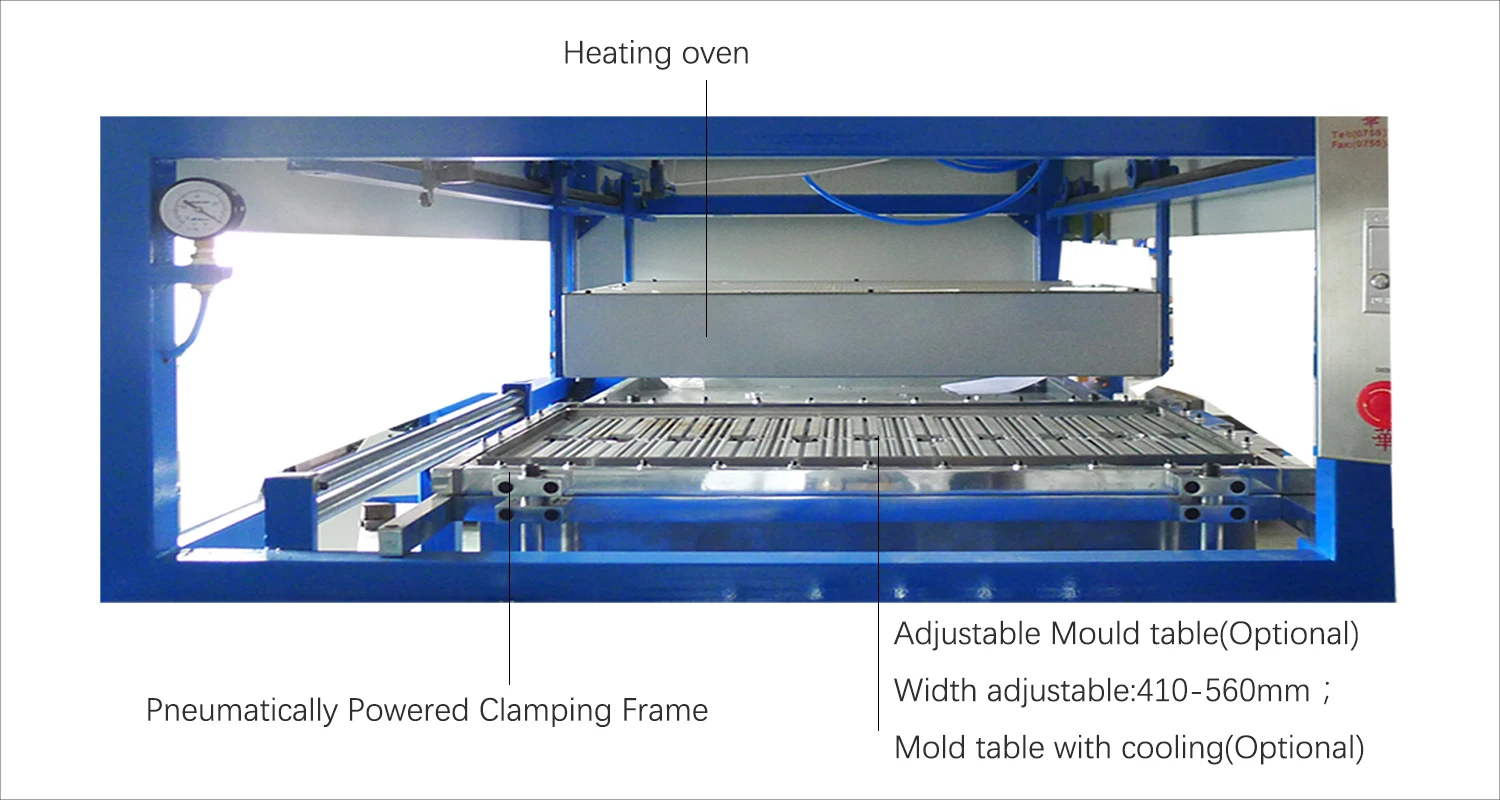

Machine function:                                                                                              Extra function for HX-600A/B:

1.Ceramic Heaters with Variable Standby
2.Pneumatic Heater Drive
3.Pneumatically Powered Clamping Frame
4.Big Cooling Fans
5.Reel Feeder
6.Automatic finished unloader

7.30/25 Independently Controllable Heating Zone
8.Vacuum Receiver Tank
9.Vacuum Flow Regulator
10.Vacuum and Pressure Gauges
11.Safety Lighting
12. Spray Gun (Spray Mist)

13. Upward air blown gas

1.PLC Control

2.Programme Memory

3.Digital Temperature Control

4. Robot Hand rise/fall

5.Electronic mold table with Width adjust(Optional)

6.Mold table with Cooling(Optional)

Detailed Parts

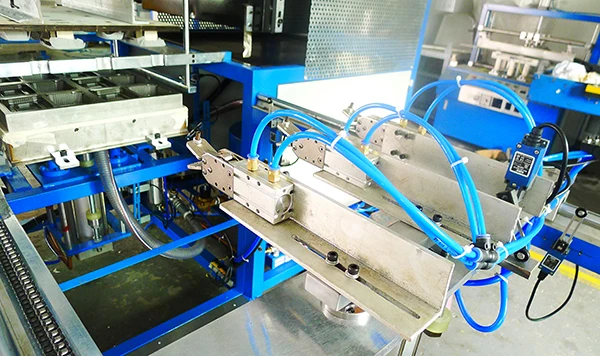

Robot hand and sheet clamp

Good use for the taller products, make sure the blister tray not locked by frame;

sheet clamp x3 , sheet catch stable;

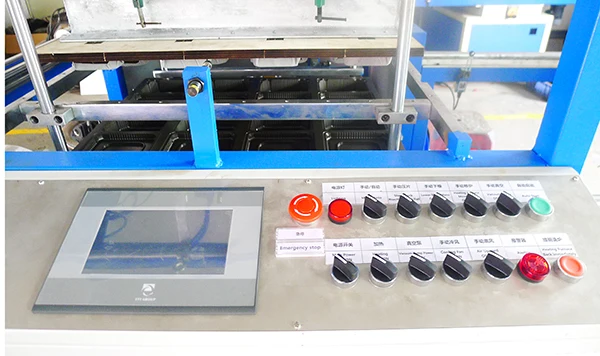

PLC Control

Includes two kinds of control mode such as PLC mode and press-button control;

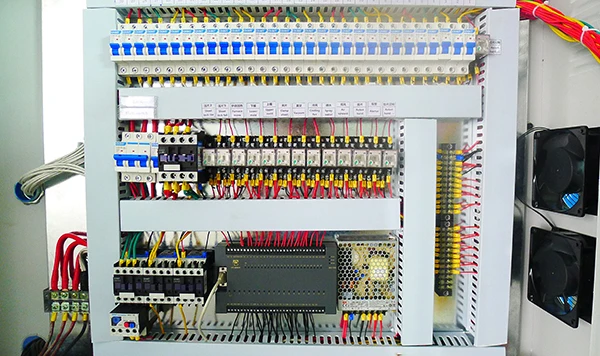

Electricity box

The switch, electricity meter of the meter box are set in separate area;

The floor box provides a plurality of facilities, such as vacuum and electricity;

Japanese and Germany accessories;

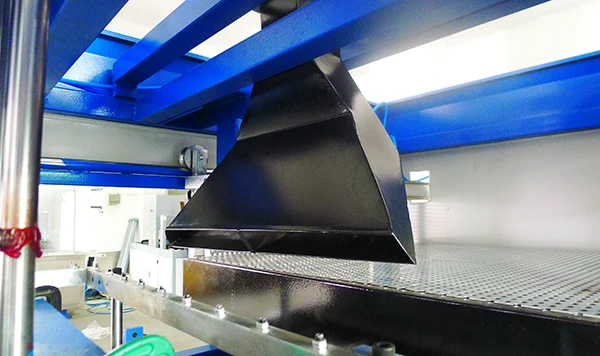

Industrial cooling fan

Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;

Ceramic heating oven

25/30 pcs Ceramic Heaters;

Power:16kw or 19Kw (every 0.65kw)
Heater size:12cm*12cm;

Save 10% power compare with competitors;

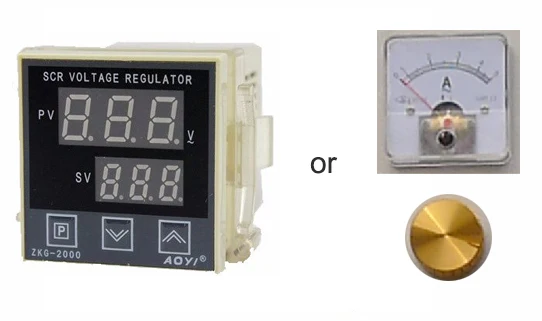

Digital temperature or micro controller

In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
25/30 Independently Controllable Heating Zones;

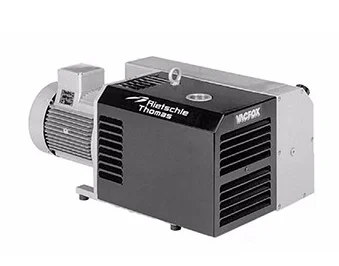

Vacuum pump

Brand: Rietschie Thomas or Chinese Brand(Optional);
Original: Germany or Chinese (Optional);
100m³,63m³,40m³,20m³ (Optional);

Sample

PVC Tray Thickness: 0.3mm, forming time: 6s;

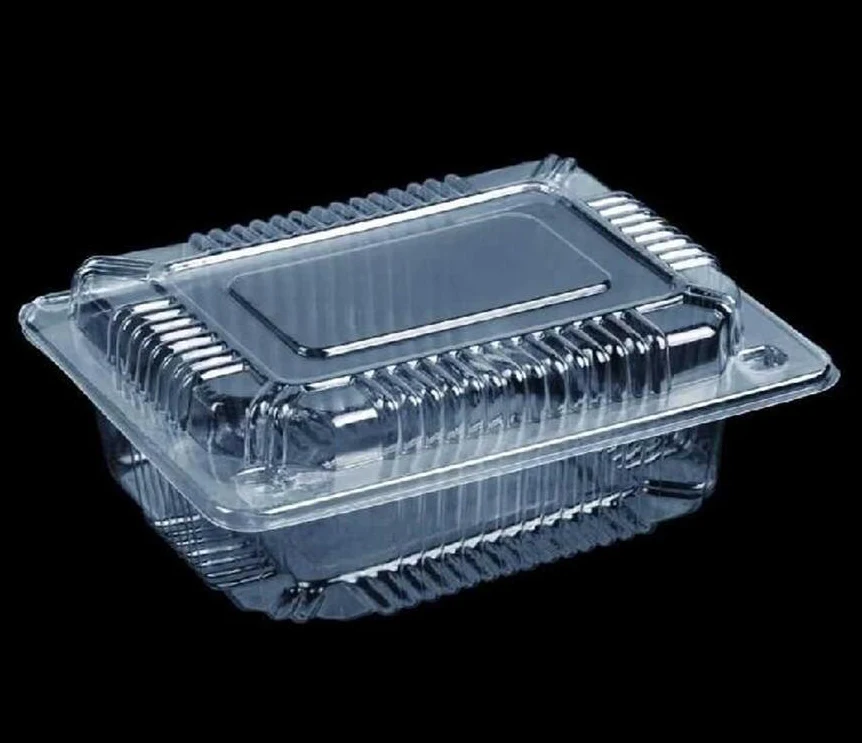

PET Fruit box,thickness:0.38mm;

PE FOAM, Thickness:0.8mm, Forming time:6s;

PS Tray,Thickness: 0.7mm Forming time: 10s;

Packing & Delivering

Packing

1.Wooden box or wooden frame, box:40USB/CBM, wooden frame:18USD/CBM
2. Woodwork will be fumigated in many country
3.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.
4.Machines will be Split to facilitate placement

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Factory Info

Shenzhen HUAXIANG Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?

Machine recommend
