Plastic Welder High Frequency Welding Machine for Computer Mouse Packaging

  • 1 - 1 Sets
    $3,000.00
  • 2 - 2 Sets
    $2,950.00
  • 3 - 3 Sets
    $2,900.00
  • >=4 Sets
    $2,800.00
Model Number:
HX-5KE-15KE
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 15 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Huaxiang
Voltage:
220V or 380V, 50HZ
Power:
5KW, 5KW
Frequency:
27.12MHZ
Welding Area:
Adjustable, 300*500mm
Dimensions:
L1.44*W0.75*H1.81m
Weight:
400KG
Usage:
Plastic Welding/Packaging
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
Application:
Commodity, Medical, Machinery & Hardware
Certificate:
CE Approved
Automatic Grade:
PLC Automatic
Material:
PVC,PP,PET,PS,Rubber,Leather
Scale of tempreture:
0-200℃
Welding Time:
0-10S Adjustable
Making Samples:
Leather or Plastic Welding
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic Welder High Frequency Welding Machine for Computer Mouse Packaging
1. Outside package: Standard export wooden case;
2.. Inner package: Stretch film.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 15 15 To be negotiated
Product Description

Specifications

1.Using vacuum tubes, output power is stable and reliable
2.Sensitive spark over-current protection circuit
3.CE certificate

Application

Leather: wallet, passport, bags, belts, leather gifts, leather suits, leather goods;
Bags, briefcases, briefcase, travel bag, handbag, laptop bag, etc.;
Primer: notebooks, universal handbooks, industrial and commercial logs, contacts, efficiency, manual, manager, etc.;

Leather cover: tablet leather case (dell, apple, acer, dell, HTC, asus and samsung, hanwang, blackberry, etc.), mobile phone holster (iPhone, samsung, nokia, HTC, MOTOROLA, etc.), leather carrying case, imitation leather skin cover, product (leather box), digital products carrying case, electronic products, communication products, such as carrying case, medical equipment products.


Model
HX-5KE
HX-8KE
HX-10KE
HX-12KE
HX-15KE
Output Power(KW)
5
8
10
12
15
Input Power(KVA)
8
15
18
20
25
Oscillation Tube
7T85RB
7T69RB
E3069RB
3130RB
8T85RB
Sealing Force(T)
5
10
10
15
15
Stroke Adjustment(mm)
100
100
100
100
150
The size of upper electrode(mm)
200*350
300*500
300*500
400*500
400*600
The size of lower electrode(mm)
300*500
300*500
300*500
400*500
Rectifier
Rectifier
Silicon Diode
Gap of electrodes(mm)
200
Voltage
50/60HZ   AC380V 3P
Speed(second)
1-10
Capacity(per/h)
<360
Frequency(MHZ)
27.12MHZ
PS: We could customize other specifications for you according to your need!

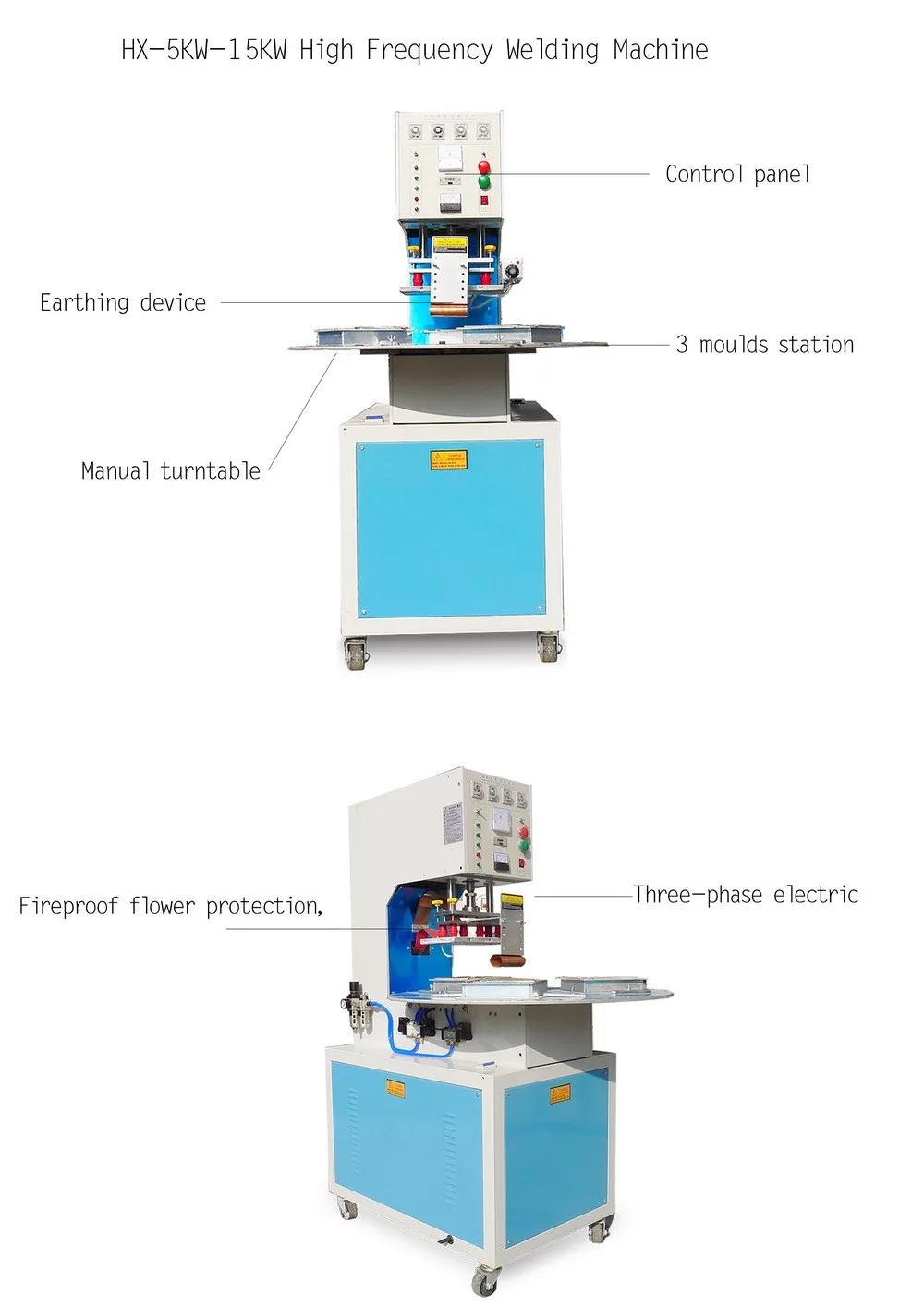

Features

When electric current exceed the limit, the overload current relays automatic protect the Oscillation tube and Rectifier . When Inadequate cooling, it can automatically cut off the power, and to avoid the frequent drift and unnecessary parts wastage caused by inappropriate handling.

Packaging Type

No matter what you wish to package. You receive the appropriate packaging solution, based on your specifications.With the HUAXIANG, you can choose between three blister types:


           Card - Blister


                   Blister - Blister


                      Blister - card - Blister

             click picture view more

              click picture view more

              click picture view more



               click picture view more


                  click picture view more


            click picture view more

Mould


               click picture view more

             click picture view more

             click picture view more

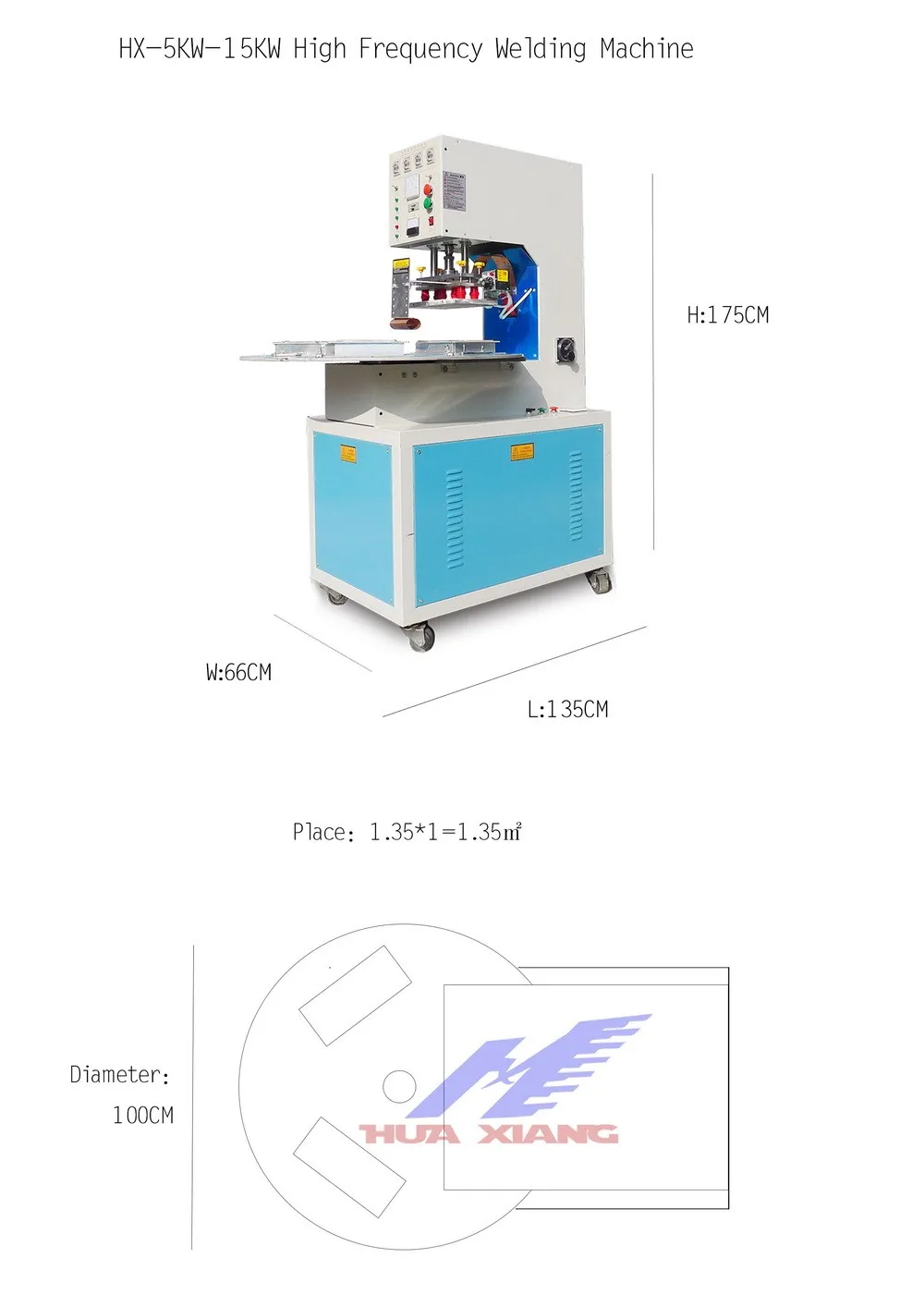

Machine Size
Packaging & Delivery
Packaging
Size
L2*W1*H2.2 m
Weight
400kg
PackagingDetails
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placment
Related Product

                   PLC control

                    4 station

                           3 station

                            2 station

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Factory Info

About us

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact

In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample: length, width and thickness?
