Semi Automatic Vacuum Forming Machine

  • 1 - 1 Sets
    $3,900.00
  • 2 - 2 Sets
    $3,800.00
  • 3 - 3 Sets
    $3,700.00
  • >=4 Sets
    $3,500.00
Model Number:
HX-2224
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Plastic Type:
PVC, PP,PVC,PET,PS,ABS
Type:
Thermoforming Machine
Product Type:
Blister
Automatic:
No
Place of Origin:
Guangdong, China
Brand Name:
HUAXIANG
Voltage:
380V 50HZ 3Phase
Dimension(L*W*H):
L1480*W1800*H1800(mm)
Certification:
CE Certificate
Warranty:
1 YEAR, One Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Product name:
thermoforming Vacuum forming machine
Forming Length:
610mm/24"
Forming Width:
560mm/22"
Sheet thickness:
0.1-2.0(mm)
Sheet Width:
610(mm)
Pull Piece Precision:
0.1mm
Application:
Beverage,Food,Commodity,Medical,Chemical,Electric,Machinery&Hardware
Power(W):
10-15kw
Weight:
400kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic Thermoforming Machine
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Related Products
Description

Model:HX-2224 Semi Automatic Vacuum Forming Machine

Information

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.

Typical application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

HX-2224

Parameter
Forming length
mm
610
Forming width
mm
560
Forming height
mm
150

Material
Application type
PP,PS,PET,PVC,Foam
Genre
Sheet stock roll
Thickness
mm
0.1-2.0
Material width
mm
630

Dyanmical system
Compressor
HP
3
Vacumm value
20
Heate type
Ceramic heater
15kw
Control
Press-button switch

Main Features

The equipment for single blister machine, this machine is characterized by reasonable structure, easy operation, suitable for sucking SuChang draw a small blister board or less investment.Manual feeding clip frame fixed, heating vacuum blower Japan time and vacuum valve control cylinder series of action programs, for semi-automatic operation.

1) 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3) Large-scale cooling fan which can cool the products quickly.
4)Cooling system which suit for thick material.(optional)
5) Manual and Semi-auto style.

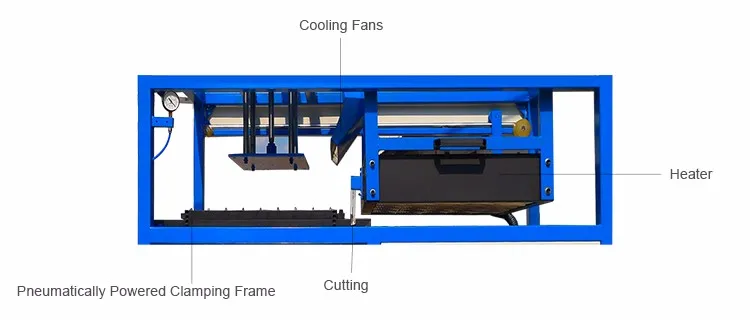

Machine function

Ceramic Heaters with Full Temperature
25 Independently Controllable Heating Zones
Pneumatically Powered Clamping Frame
Digital Timer
One Cooling Fans

Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
20m³  Vacuum Pump

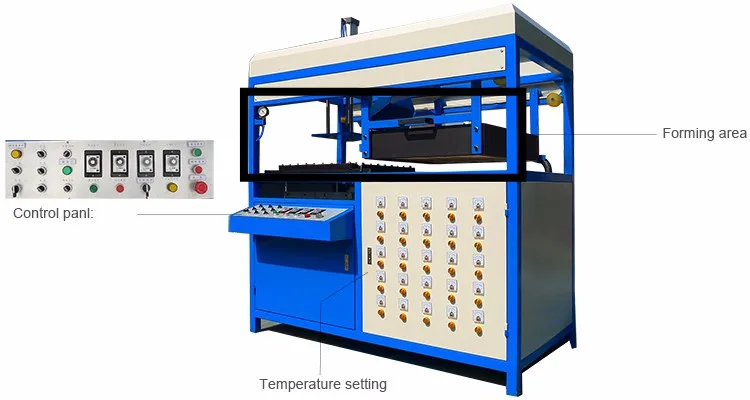

Forming Part

Semi-Automatic Vacuum Forming Machine.HX-2224  is equipped with a max. forming area of 610 x 560 mm. Further information you will find in sections "Brochure" and "Technical Data".



Machine Video

Please copy below youtube link to see our machine HX-2224 Series.
YouTube link:


Operation:
https://www.youtube.com/watch?v=Fx55YZlMQ_E&feature=youtu.be
How to setup wizard:
https://www.youtube.com/watch?v=sQh7wf7H5Yk&feature=youtu.be

Sample

PVC sample

Material: Pvc
Thickness: 0.3mm
speed: 6s
Can forming two at a time

Size

Place

1) The machine overs an area of 2.664m²;
2)Requires 20m² of space to place ;
3)In the open air environment;
4) Weight 400kg

Packing
Packaging
Size
1.8 (L) * 1(W) * 1.8(H)≈3.24m³
Weight
600kg



Packaging Details
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placment
