Vacuum forming machine Compact type

  • 1 - 1 Sets
    $22,000.00
  • 2 - 2 Sets
    $21,000.00
  • 3 - 3 Sets
    $20,000.00
  • >=4 Sets
    $19,500.00
Model Number:
HX-700
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Thermoforming Machine, Foaming Machine
Plastic Type:
PVC,PET,PP,PS, PP,PVC,PET,PS,ABS
Product Type:
Blister, Fast Food Box,Blister
Automatic:
Yes
Place of Origin:
China
Brand Name:
HUAXIANG
Voltage:
380V
Power(W):
15-25kw
Weight:
15000KG

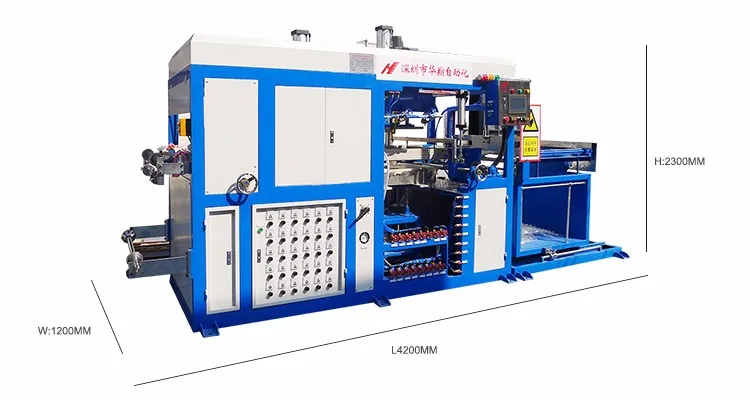

Dimension(L*W*H):
L4600*W1400*H2200(mm)
Certification:
CE
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
Name:
plastic vacuum forming machine
Forming Length:
460-710mm
Forming Width:
610mm
Pull Piece Precision:
1mm
Stock Thickness:
0.1-2.0(mm)
Sheet Width:
460-660(mm)
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic Thermoforming Machine
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Related Products
Description

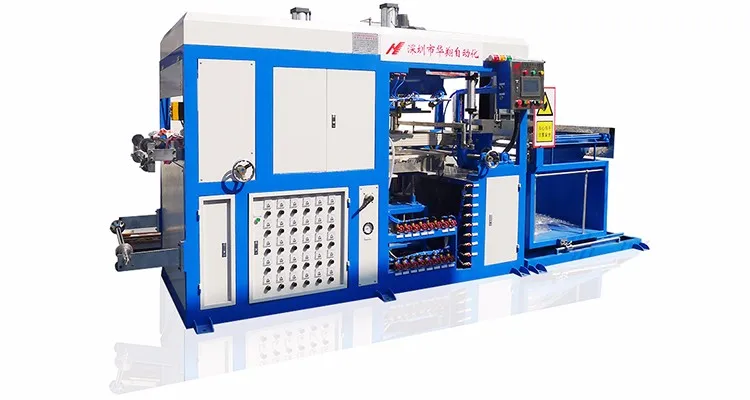

Model:HX-700 Vacuum Forming Machine compact type

Information

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.

Typical application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;


Parameter
Forming length
460-750mm
18.11 -  27.95 Inches
Forming width
410-610mm
16.14 -  24.01 Inches
Forming height
Max.150mm
5.9 Inches


Material
Application type
PP,PS,PET,PVC,Foam
Genre
Reel feed
Thickness
0.1-2.0mm
max.0.08 inches
Reel / Material width
450 mm
17.71 Inches



Dynamical system
Compressor
10HP
Vacumm value
63 m³
Heater type
Ceramic
600Kw/per
Heating zones
30 pcs
18Kw
Power Consumption
about 20Kw
3Phase Powe requirement
Control type
Press-button switch or PLC control

Main Features

1) In the digital temperature controller, temperature setting is convenient, high precision of temperature control;

2) Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning      of ovens into areas of adjustable heat;

3) rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing      and opening speeds and timing of the tooling;

4) The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely                    improved due to the common use of electric servo motors for chain indexing versus air cylinders, gear racks, and            clutches on older machines;

5) Electric servo motors are used on forming machines for actuation of the machine platens where form and trim                  tooling are mounted;

Machine function

PLC Control with 7' Touch Screen
Ceramic Heaters with Full Temperature
30 Independently Controllable Heating Zones
Pneumatic Heater Drive
Pneumatically Powered Clamping Frame
Digital Timer
Twin Cooling Fans
Cooling Bolster

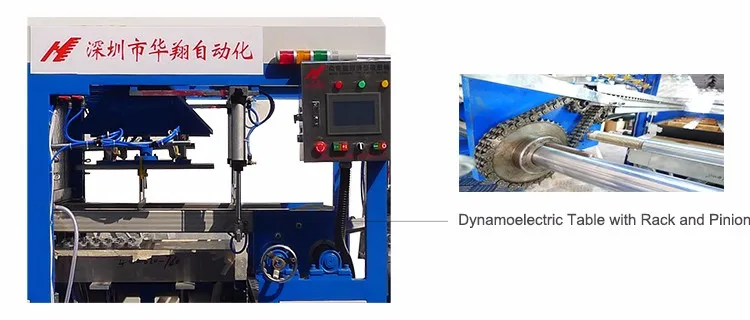

Dynamoelectric Table with Rack and Pinion
2 Stage Clamping
Reel Feed

400 Programme Memory
Ceramic Heaters with Variable Standby
Servo Powered Table with Height adjust
Servo Electric Plug Assist
Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
Rietschie Thomas Vacuum Pump
Safety Light Curtain
6 Spray Gun (Spray Mist)
Auto-level

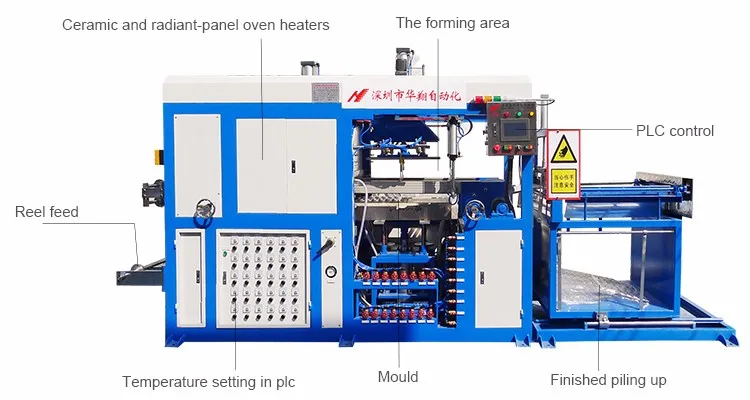

Compact type machine

We will introduce an update of its machine, as well as some new small machine. A new line of fuel-efficient engines will also be available. Further information you will find in sections "Brochure" and "Technical Data".

Forming size:
HX-700:610*710 mm
HX-18: 710-1220 mm

Machine Video
Please copy below youtube link to see our machine HX-700 Series.
YouTube link:
https://www.youtube.com/watch?v=uhZS54-wDpM&feature=youtu.be

Detailed Images

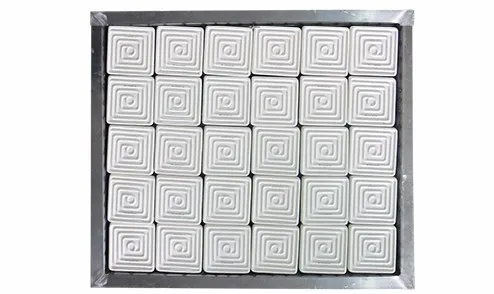

Ceramic panel oven heater

Name: Heater
Brand: Huaxiang
Original: China


Contained about 30 Ceramic Heaters,
Power:36kw (every 0.6kw)
Ceramic Heater size:12cm*12cm


PLC temperature controller

Name:PLC Touch Temperature Controller
Brand: HUAXIANG
Original: China
1.PLC Control with 7' Touch Screen,400 Programme Memory temperature setting is convenient, high precision of temperature control.
2.30 Independently Controllable Heating Zones

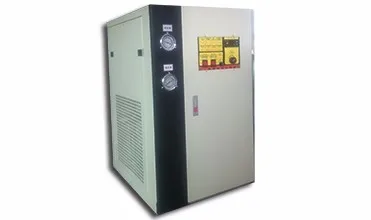

Water-Cooled chiller

Name: Water-Cooled chiller
Brand: Huaxiang
Original: china

The designs of chillerradiatorunique , so the heat exchange efficiency is very high.



Vacuum Pump

Name: Vacuum pump

Brand: Rietschie Thomas
Original: Germany

63m³
Sample

PVC sample

Material: Pvc
Thickness: 0.3mm
speed time: 6s

Click the pic view more

Click the pic view more

Helmet and mask

Material PP,PS,PET,PVC

Different material sheet with print

speed time: 10S

Click the pic view more

Size

Place

1) The machine overs an area of 5.04m²;
2)Requires 20m² of space to place ;
3)In the open air environment;
4) Weight 1500kg

Packing & Delivery
Packaging
Size
3.9 (L) * 1.2(W) * 2.2(H)≈10.2m³
Weight
2 T
Packaging Details
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placement
Related Products

HX-18G PLC control

Automatic Forming Machine
Forming size:710*1220 mm

HX-18B Digital Timer control

Automatic Forming Machine
Forming size:710*1220 mm

HX-2224 Semi-Automatic

Semi-Automatic
Forming size:560*610 mm

HX-700 Compact type

Automatic Forming Machine
Forming size:610*750 mm

HX-600 Compact type 2

Automatic Forming Machine
Forming size:560*740 mm

HX-2234  Duoble station

Semi-Automatic
Forming size:560*610 mm

Factory info

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

About us

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?

Name:Bird

Phone +86 135 4332 8952
Tel: 0086 755 28942718
Fax: 0086 755 28942708

WeChat:  +86 135 4332 8952
Skype:  +86 135 4332 8952
Web:  https://hxauto.en.alibaba.com/

More company info click our website: https://hxauto.en.alibaba.com/
