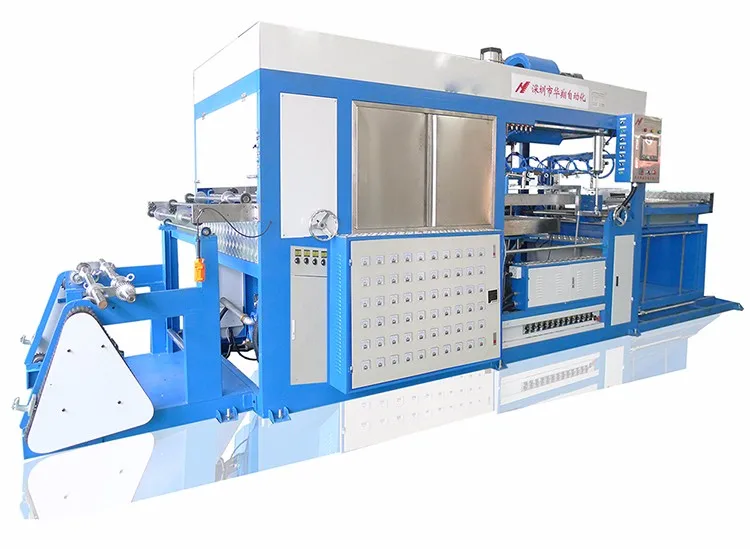

Automatic Vacuum Forming Machine

  • 1 - 1 Sets
    $32,000.00
  • 2 - 2 Sets
    $31,500.00
  • 3 - 3 Sets
    $31,000.00
  • >=4 Sets
    $30,000.00
Model Number:
HX-18G
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Plastic Type:
PP,PS,PVC,PET
Type:
Thermoforming Machine
Product Type:
Blister
Automatic:
Yes
Place of Origin:
Guangdong, China
Brand Name:
HuaXiang
Voltage:
380v
Dimension(L*W*H):
L7500*W1800*H2700(mm)
Certification:
CE Certificate
Warranty:
1 YEAR, 12 Months
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Forming length:
710-1220(mm)
Forming width:
460-710(mm)
Forming height:
Max.200(mm)
Sheet Thickness:
0.1-2.0(mm)
Processing Type:
Plastic Thermoforming Machine
Application:
Beverage,Food,Commodity,Medical,Chemical,Electric,Machinery&Hardware
Product name:
thermoforming Vacuum forming machine
Mould:
Cast aluminum Molds;Machined aluminum Molds;Composite Molds;
Power(W):
18-30kw
Weight:
3500kg
Supply Ability
Supply Ability:
10 Set/Sets per Month vacuum forming machine
Packaging & Delivery
Packaging Details
Plastic Thermoforming Machine
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Model: HX-18B Vacuum Forming Machine

Information

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.


Typical application

Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.


Types of thermoforming molds

Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

HX-18G


Parameter
Forming length
710-1220
mm
Forming width
460-710
mm
Forming height
max.200
mm


Material
Aapplication type
PP,PS,PET,PVC,Foam
Genre
Sheet stock roll
Thickness
0.1-2.0
mm
Material width
480-730
mm


Dynamical system
Compressor
20
HP
Vacuum value
100
Heate Type
Ceramic heater
36kw (Every 0.6kw)
Control
PLC-touch Control

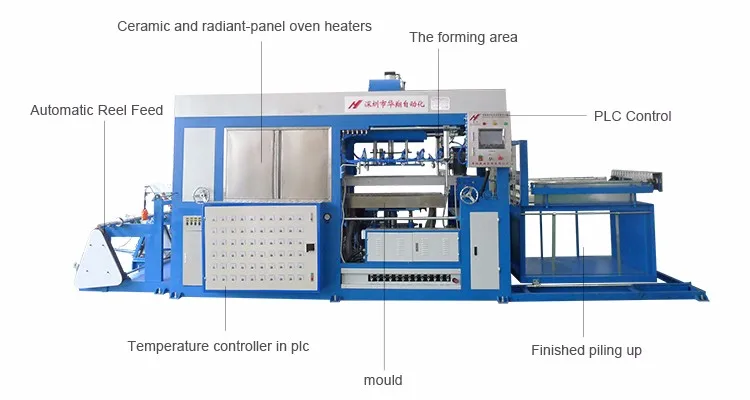

Main Features

1) In the digital temperature controller, temperature setting is convenient, high precision of temperature control;

2) Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;

3) rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;

4) The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric servo motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;

5) Electric servo motors are used on forming machines for actuation of the machine platens where form and trim tooling are mounted;

Machine function

PLC Control with 7' Touch Screen

Ceramic Heaters with Full Temperature Feedback
60 Independently Controllable Heating Zones
Pneumatic Heater Drive
Pneumatically Powered Clamping Frame
Digital Timer
Twin Cooling Fans
Cooling Bolster
Dynamoelectric Table with Rack and Pinion

2 Stage Clamping

Automatic Reel Feed

400 Programme Memory

Ceramic Heaters with Variable Standby

Servo Powered Table with Height adjust

Servo Electric Plug Assist
Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
Rietschie Thomas Vacuum Pump
Safety Light Curtain
10 Spray Gun (Spray Mist)
Auto-level

Ceramic panel oven heater

Contained about 60 Ceramic Heaters, Power:36kw (every 0.6kw)
Ceramic Heater size:12cm*12cm

Forming Part

HX-18G-PLC control is equipped with a max. forming area of 710 x 1220 mm. Further information you will find in sections "Brochure" and "Technical Data".


Machine Video
Please copy below youtube link to see our machine HX-18 Series.
YouTube link:
https://www.youtube.com/watch?v=3BY-0bpj738

Detailed Parts

Automatic feeding system

Name: Reel Feed
Brand:HUAXIANG
Original: CHINA
Material is placed in this shelf,load bearing 100-200kgs,
the system can help you moved the sheet on the machine will become a breeze

PLC temperature controller

Name:PLC Touch Temperature Controller
Brand:HUAXIANG
Original: CHINA
PLC Control with 7' Touch Screen,400 Programme Memory temperature setting is convenient, high precision of temperature control.
60 Independently Controllable Heating Zones

Water-Cooled chiller

Name: Water-Cooled chiller
Brand: HUAXIANG
Original: CHINA
The designs of chillerradiatorunique , so the heat exchange efficiency is very high.

Vacuum pump

Name: vacuum pump
Brand: Rietschie Thomas
Original: Germany
100m³

Sample Show

PE sample

Material: PE-LD
Thickness: 1mm
Speed: 20s
Can forming 4 at a time

PS sample.

Material: PS
Thickness: 0.7mm
Speed: 10s
Can forming 2 at a time

Foam materials sample.

High precision of temperature control
Make sure that thawless

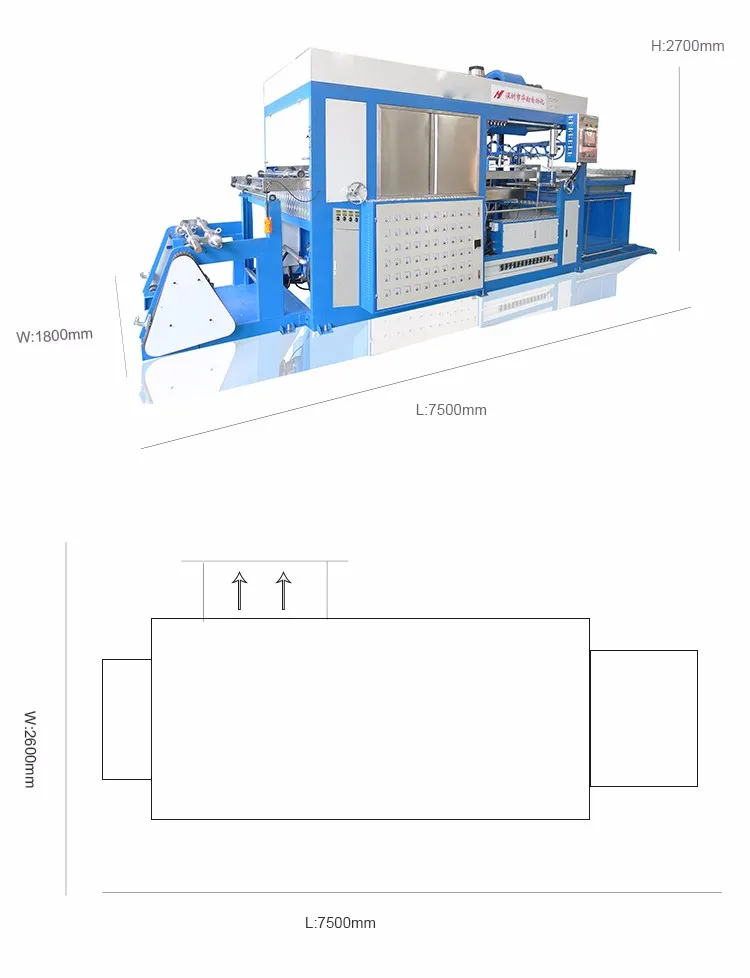

Machine size

Place

1) The machine overs an area of 19.5m²;
2)Requires 40m² of space to place ;
3)In the open air environment;
4) Weight 3500kg

Packing&Deliver
Packaging
Size
6.3 (L) * 2.3 (W) * 2.3(H) ≈ 34m³
Weight
about 4T


Packaging Details
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placement
Related Products

HX-18G PLC control

Automatic Forming Machine
Forming size:710*1220 mm

HX-18B Digital Timer control

Automatic Forming Machine
Forming size:710*1220 mm

HX-700 Compact type

Automatic Forming Machine
Forming size:610*750 mm

HX-600 Compact type 2

Automatic Forming Machine
Forming size:560*740 mm

HX-2224 Semi

Semi-Automatic
Forming size:560*610 mm

HX-2234 Semi Duoble station die

Semi-Automatic
Forming size:560*610 mm
