Automatic Thermoforming Machine

  • 1 - 1 Sets
    $30,000.00
  • 2 - 2 Sets
    $29,500.00
  • 3 - 3 Sets
    $29,000.00
  • >=4 Sets
    $28,000.00
Model Number:
HX-18B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Plastic Type:
PP,PS,PVC,PET, PP,PVC,PET,PS,ABS
Type:
Vacuum Forming Machine
Product Type:
Blister
Automatic:
Yes
Place of Origin:
Guangdong, China
Brand Name:
HuaXiang
Voltage:
380v
Dimension(L*W*H):
L75000*W1800*H2700(mm)
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Forming length:
710-1220(mm)
Forming width:
460-710(mm)
Forming height:
Max. 200(mm)
Sheet Thickness:
0.1-2.0(mm)
Processing Type:
Plastic Thermoforming Machine
Application:
Beverage,Food,Commodity,Medical,Chemical,Electric,Machinery&Hardware
Product name:
thermoforming Vacuum forming machine
Mould:
Cast aluminum Molds;Machined aluminum Molds;Composite Molds;
Power(W):
18-30kw
Weight:
3500kg
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic Thermoforming Machine
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Model: HX-18B Vacuum Forming Machine


Information

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.


Typical application

Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.


Types of thermoforming molds

Wood Patterns ;

Cast aluminum Molds;

Machined aluminum Molds;

Composite Molds;

HX-18B


Parameter
Forming length
710-1220
mm
Forming width
460-710
mm
Forming height
max.200
mm


Material
Aapplication type
PP、PS、PET、PVC、Foam
Genre
Sheet stock roll
Thickness
0.1-2.0
mm
Material width
480-730
mm


Dynamical system
Compressor
20
HP
Vacuum value
100
m³
Heate  Type
Ceramic heater
36kw (Every 0.6kw)
Control
Press-button switch


Main Features

1) In the digital temperature controller, temperature setting is convenient, high precision of temperature control;


2) Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;


3) rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;


4) The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric servo motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;


5) Electric servo motors are  used on  forming machines for actuation of the machine platens where form and trim tooling are mounted;

Machine function

Ceramic Heaters with Full Temperature

60 Independently Controllable Feedback

Pneumatic Heater Drive

Pneumatically Powered Clamping Frame

Digital Timer

Twin Cooling Fans

Cooling Bolster

Dynamoelectric Table with Rack and Pinion

Reel Feed

Servo Powered Table with Height adjust

Servo Electric Plug Assist

Vacuum Receiver Tank
Vacuum Flow Regulator

Vacuum and Pressure Gauges

Rietschie Thomas Vacuum Pump

Safety Light Curtain

10 Spray Gun  (Spray Mist)

Auto-level


Ceramic panel oven heater

Contained about 60 Ceramic Heaters, Power:36kw (every 0.6kw)

Ceramic Heater size:12cm*12cm

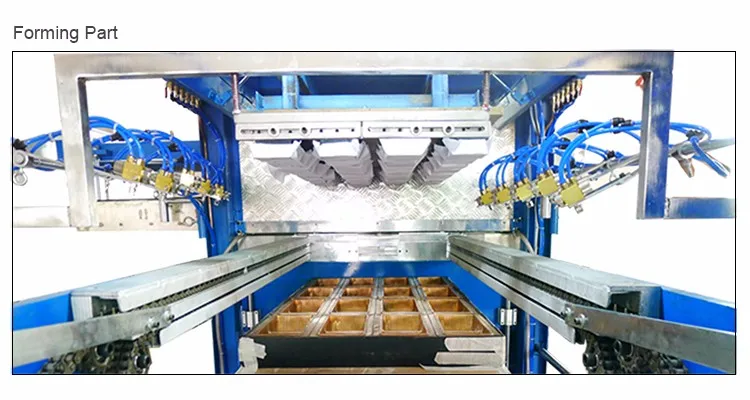

Forming Part

HX-18B is equipped with a max. forming area of 710 x 1220 mm. Further information you will find in sections "Brochure" and "Technical Data".


Machine Video
Please copy below youtube link to see our machine HX-18 Series.
YouTube link:
https://www.youtube.com/watch?v=3BY-0bpj738

Detailed Parts

Automatic feeding system

Name: Reel Feed

Brand:HUAXIANG

Original: CHINA

Material is placed in this shelf,load bearing 100-200kgs,

the system can help you moved the sheet on the machine will become a breeze



Digital temperature controller

Name: Temperature controller
Brand:AOYI
Original: CHINA
In the digital temperature controller, temperature setting is convenient, high precision of temperature control.

60 Independently Controllable Heating Zones

Water-Cooled chiller

Name: ceramic heater
Brand: HUAXIANG
Original: CHINA

The designs of chillerradiatorunique , so the heat exchange efficiency is very high.



Vacuum pump

Name: vacuum pump
Brand: Rietschie Thomas
Original: Germany
100m³

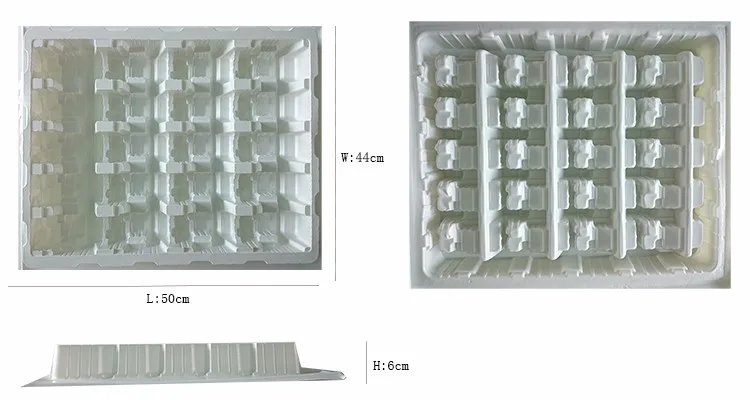

Sample Show

PE sample

Material:     PE-LD

Thickness: 1mm

Speed:  20s

Can forming 4 at a time


PS sample.

Material: PE-LD
Thickness: 0.7mm
Speed: 10s
Can forming 2 at a time



Foam materials sample.

High precision of temperature control
Make sure that thawless

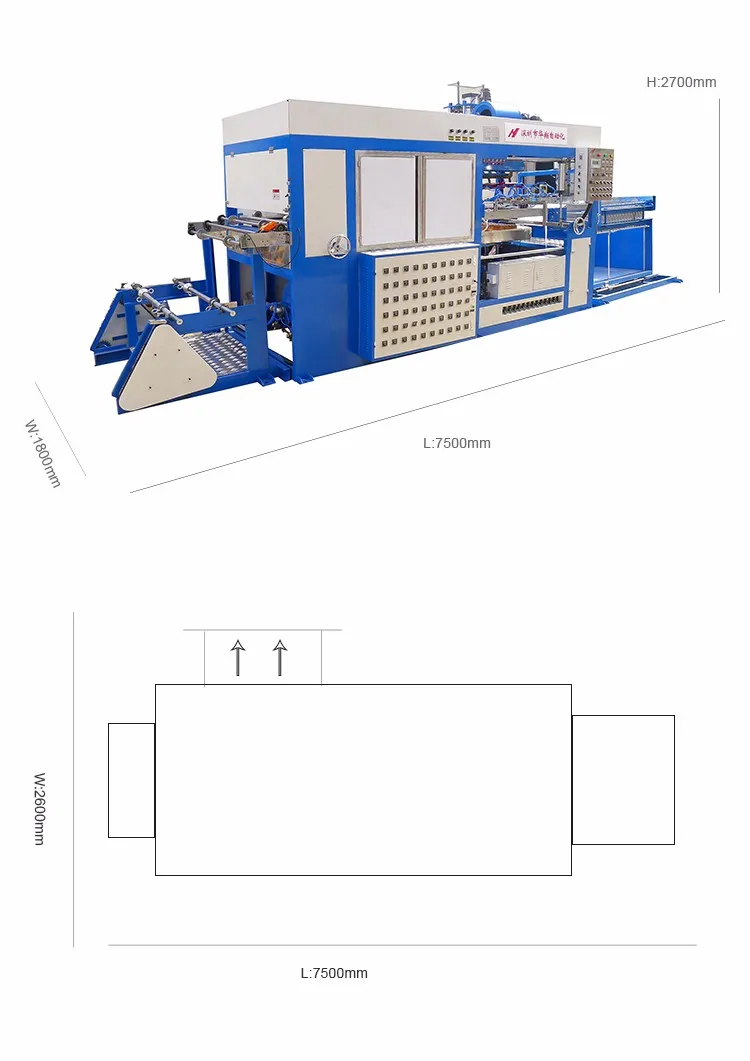

Machine size
Place

1)  The machine overs an area of 19.5m²;

2)Requires 40m²  of space to place ;

3)In the open air environment;

4)  Weight 3500kg

Packing & Delivery
Packaging
Size
6.3 (L) * 2.3 (W) * 2.3(H)   ≈ 34m³
Weight
about 4T



Packaging Details
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placement
Related Products

HX-18G PLC control

Automatic Forming Machine

Forming size:710*1220 mm

HX-18B Digital Timer control

Automatic Forming Machine

Forming size:710*1220 mm

HX-700  Compact type

Automatic Forming Machine

Forming size:610*750 mm

HX-600 Compact type 2

Automatic Forming Machine

Forming size:560*740 mm

HX-2224 Semi

Semi-Automatic

Forming size:560*610 mm

HX-2234 Semi Duoble station die

Semi-Automatic

Forming size:560*610 mm

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Factory info

About us

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming、plastic packaging.


Contact

In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length  Width and  thickness?

Name: Cooper

Phone:+86 139 0302 1604
Tel:  0086 755 28942718
Fax: 0086 755 28942708


WeChat: 139 0302 1604
Skype: 139 0302 1604
Web: http://en.szhx-tw.com/
