CE approved thermoforming tablet capsule blister packing machine price

  • 1 - 1 Sets
    $1,800.00
  • 2 - 2 Sets
    $1,700.00
  • 3 - 3 Sets
    $1,600.00
  • >=4 Sets
    $1,500.00
Power:
1.5kw
Model Number:
HX-50c
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 15 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples - $1,820.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Automatic Grade:
Semi-Automatic
Dimension(L*W*H):
L510*W715*H1400mm
Type:
Blister Packaging Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Driven Type:
Electric
Voltage:
220V
Place of Origin:
Guangdong, China
Brand Name:
HUAXIANG
Weight:
about 150kgs
Certification:
CE ISO9001
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
Product Name:
CE approved thermoforming tablet capsule blister packing machine price
Suitable Materials:
PET,PVC,PP,PS with paper card
Usage:
Blister sealing with paper card
Sealing time:
4-8s/moould
Packing area:
305*408mm
Working speed:
6-15 times/ min
Working Station:
3
Packaging Material:
Plastic+paper
Product:
2-5 S/mold
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 15 15 To be negotiated
Related Products
Product Description

Information

Blister packs are a specific type of product packaging that consists of pre-formed, molded plastic, heat sealed over a printed paperboard card. This packaging is most commonly used to hold pharmaceutical products, but it may also be used to package other small consumer goods. The paperboard card backing may contain a layer of paper, foil or plastic as well. The pre-formed, molded compartment is clear, allowing the consumer to easily view its contents.

Typical Application

Blister packs are used to package products such as toys, hardware, medication, etc.

HX-50C
Parameter
Sealing format
mm
max.500*300
Blister depth
mm
150


Dynamical
Sealing force
kN
6-36
Power
kw
1.8
Weight
KG
150

Performance
Speed
per/min
4-15
Work station
3
Control
Press-button switch

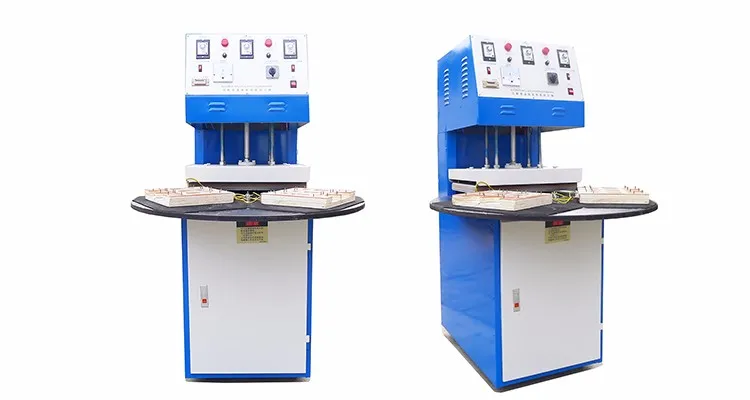

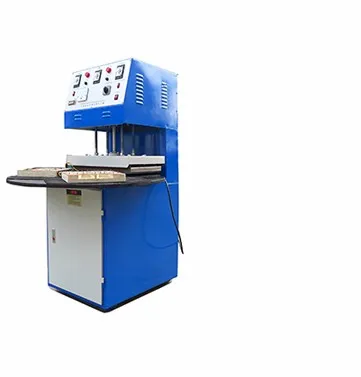

Description

This machine technology for the packaging of small to mediumsized batches while keeping costs under control: the compact Turntable Machine offers all you need to achieve this. In terms of costs, the low initial outlay, reasonably priced format parts and economical energy consumption speak in favor of the . As far as technology is concerned, the machine design allows the sealing of the blister.

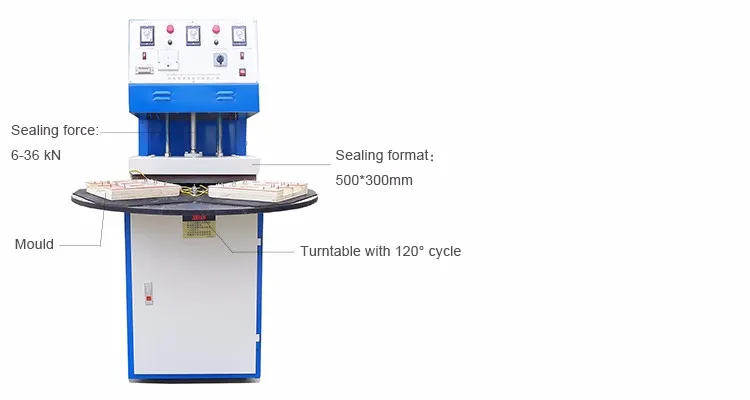

HX-50C has a turntable with three sealing tools, which guarantee a higher cycle rate. Other features include a backing card placer, a sealing unit for thermal sealing as well as a product remover.

Turntable type with three-stations for fast, cost efficient sealing

Rubber cords and spring pins of the sealing mould can be replaced easily

Sealing format:
500*300 (mm)


Main Features

1) Card to card / card to blister heat sealing machine.
2) Excellent for next step from shuttles and manual rotary machines
3) 3 stations rotary blister sealing machine.
4) Low capital costs .
5) Reasonably priced format parts and fast format changeovers .
6) Small footprint and low energy consumption.
7) Mobile as fitted with lockable casters.

Machine Video

Please copy below youtube link to see our machine HX-50C.
YouTube link:
https://www.youtube.com/watch?v=it-Y2S7pfaI&feature=youtu.be

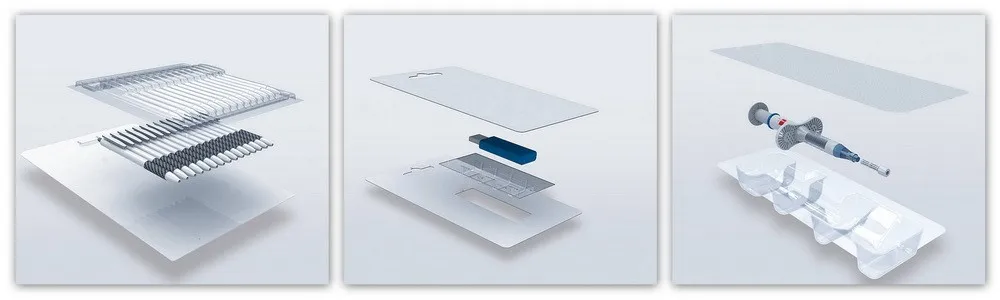

Package Type

No matter what you wish to package. You receive the appropriate packaging solution, based on your specifications.With the HUAXIANG, you can choose between three blister types:=

click picture view more

click picture view more

click picture view more

click picture view more

click picture view more

click picture view more

Mould

click picture view more

click picture view more

click picture view more

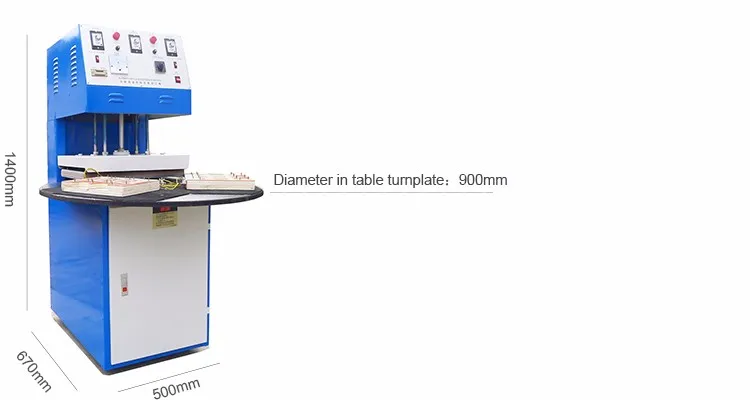

Machine Size
Packing & Delivery
Packaging
Size
L1600*W1100*L600 mm
Weight
300kg



PackagingDetails
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placment

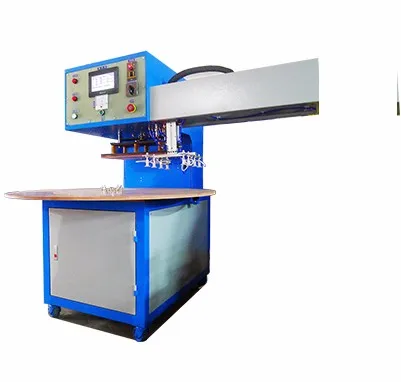

Related Products

Automatic Shuttles

Model:HX-50A-12
Formate:560*380 mm
PLC control
12 stations
Finished Unloader

Automatic Shuttles

Model:HX-50A-9
Formate:500*300 mm
Press-button control
9 stations
Finished Unloader

Shuttles

Model:HX-50E
Formate:600*400 mm
Press-button control
2 stations
X

Automatic turntable

Model:HX-50B
Formate:500*300 mm
PLC control
4 stations
Finished Unloader
Card Feeder

Automatic turntable

Model:HX-50D
Formate:500*300 mm
PLC control
4 stations
Finished Unloader
X

Turntable

Model:HX-50C
Formate:500*300 mm
Press-button control
3 stations
X
X

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

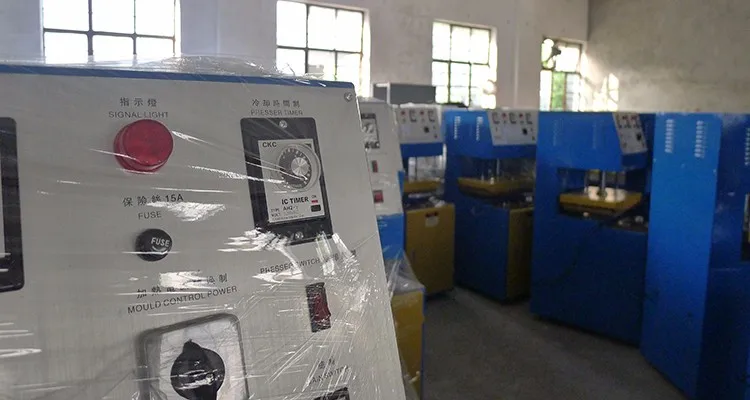

Factory info
