Edge Blister Folding Machine clamshell edge folding china supplier

  • 1 - 1 Sets
    $1,800.00
  • 2 - 2 Sets
    $1,700.00
  • 3 - 3 Sets
    $1,600.00
  • >=4 Sets
    $1,500.00
Model Number:
HX-4050 HX-4050A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
HUAXIANG
Material / Metal Processed:
Plastic
Automation:
Manual
Certification:
ce
Warranty:
1 YEAR, 12months
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Item Name:
Blister Edge Folding Machine
Packing type:
plug-in card
Material:
PP,PS,PVC,PET
Packing size:
500*300mm
Packing height:
130mm
Automatic type:
Semi-automatic
Speed:
300-600times/hour
Customized:
Yes
Machine Type:
Beading Machine
Raw Material:
Sheet / Plate Rolling
Extra Services:
Heat Treating
Power:
Pneumatic
Weight:
150kg
Supply Ability
Supply Ability:
20 Set/Sets per Month Blister Edge Folding Machine
Packaging & Delivery
Packaging Details
Edge Folding Machine
1.Outside packing :Standard export wooden case .
2.Inner packing :Stretch film
Port
shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Item No.:HX-4050

Application:

Suitable for trilateral plastic blister and plastic sheet packing products for folding ,widely used in plastic packaging area like toys, stationery, daily necessities, cosmetics, hardware, electronic gadgets etc


Main Features

1.All sides have separate heating temperature adjustment, the temperature of each side can be adjust freely.
2.The infrared photoelectric safety design, safety operation.
3.The cooling device can rapidly cooled down the folding items.
4.The products size can be adjust accordingly.

Parameter
Model
HX-4050
Power supply
220V 50HZ
Power
1.5KW
Size of the folding
W300*L500*H130mm
Speed
300-600 times / hour
Thickness of material
0.3-1.5mm
Machine size
800*600*1550mm
Machine weight
150kgs
Configuration list
Timer
Japanese, "CKC"
Relay
Japanese, "OMRON"
Photoelectric safety devices
Japanese "AUTONICS"
Temperature contral
Chinese Digital temperature control
contactor ( switch
Chinese "CHNT"
Air Cylinder
Chinese

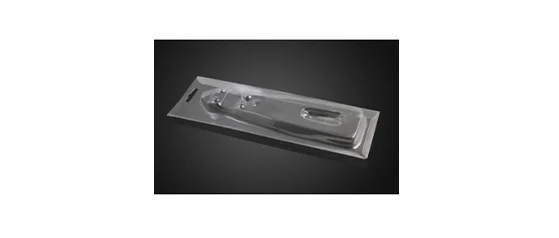

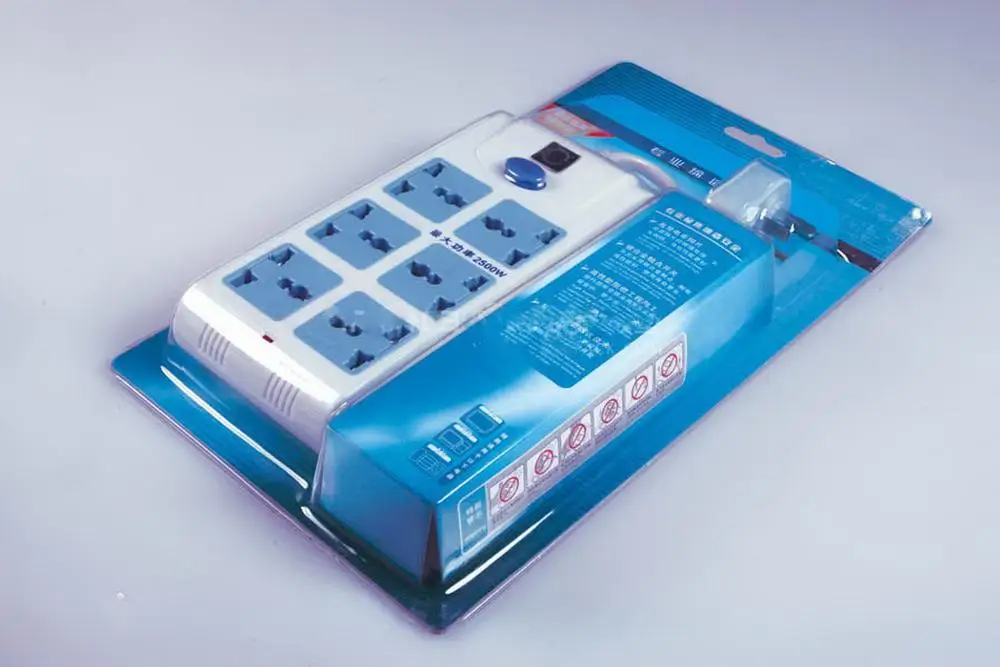

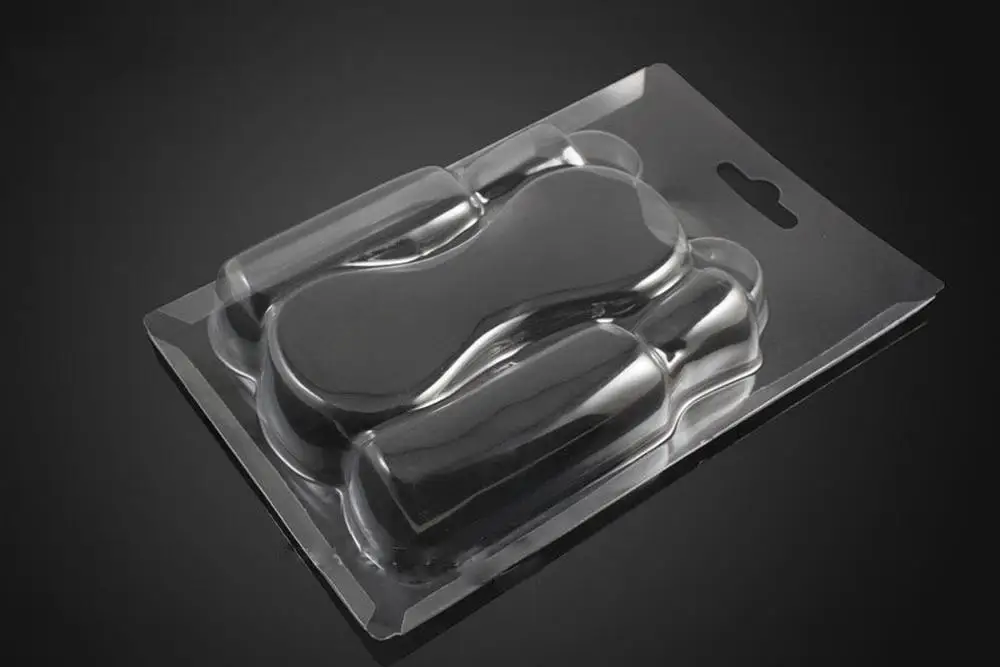

Samples Show

kind of low cost packaging solution.used for Blister pack ,such as plug-in card packaging ,widely used in toys, stationery, Digital products.which can make the packed goods simple and beautiful.

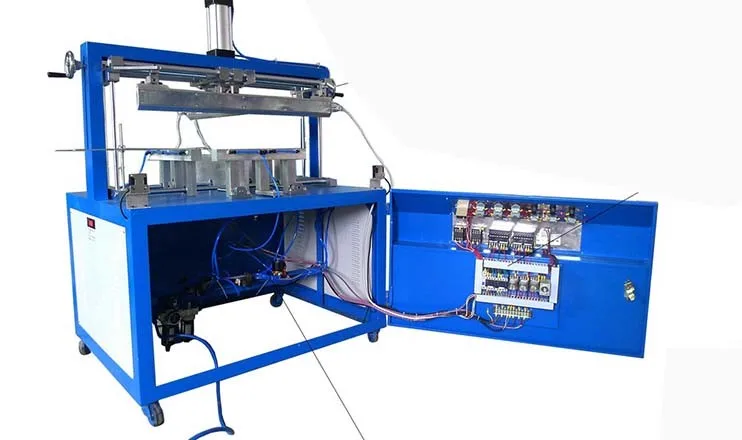

Detailed Image



In the inner part, we use high-end electronic components.

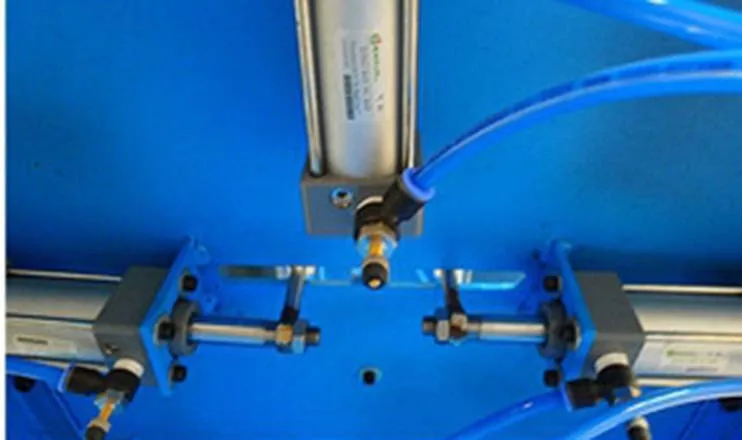

4 guids in the top, make sure more stable when working




The main fram use special steel structure with green paint.

photoelectric safety device with automatic leakage protection switch,safe and reliable.





three-way cylinder

Pressure from three sides make plastic stereotypes.

How to use

             1. put blister                             2. bending/folding                            3. take out blister                               4. done

Machine compare

HX-4050A Upgraded Type

HX-4050     Standard Type

1. HX-4050A has high quality with Reasonable structure and refined parts

2. Four guids in the top

3. Jaapanese photoelectric safety device

4. Digital temperature temperature setting

Packing & Delivery
Packaging
Size
L1.05 * W0.85 *H 1.75 =1.52CBM
Weight
0.5T
Packaging Details
1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placement
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ

1. How can i install the machine and operate it?

Our machine is easy to install and convenient to operate. We will send you English version manual, videos, photos to let you know how to do it. Meanwhile we also support free online service for you. Just tell us what you need and what problems happen. We will give you the best solutions within 24hrs. Also we can provide engineer overseas service.

2. How can you ensure the machine quality?

The accessories in the machine are imported from Japan, German, Korea and so on. Our goal is win the customer with best quality. All our workers in factory has more than 5 years experiences in this field. And we will test and check the machine again before shipped.

3. How can i do if the machine failure?

Welcome to contact us directly if the machine failure, we have professional technology team 24hrs online. We can give you the solutions in the first time to ensure the machine can work again.

4. How about your warranty?

We can provide 12 months free replace accessories. Meanwhile we will provide 2-3 sets free accessories when you purchase the machine. If possible, our engineer can go to overseas for fix your machine.


Leaving an inquiry to know more details about the price,shipment,discount etc.

Factory Info

About us

Shenzhen HuaXiang Factory Co. , Ltd. is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used  a lot in plastic forming, plastic packaging.
